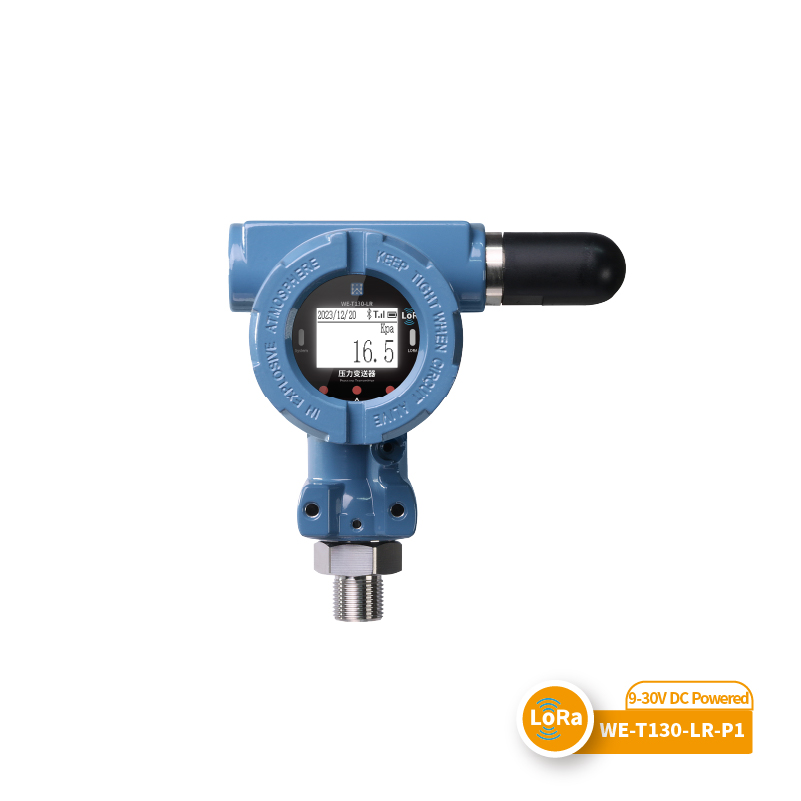

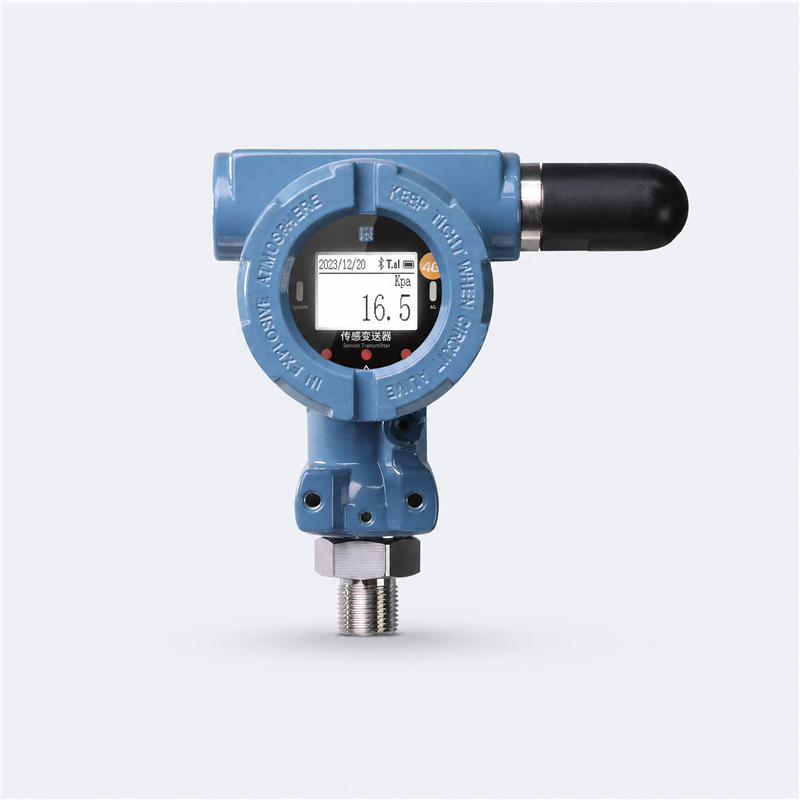

WE-T130 Explosion-proof Pressure Monitoring Transmitters

The transmitter body adopts LoRa type, supports the frequency band range of 410MHz~490MHz, and supports SMA antenna interface; The 4G type supports full Netcom communication;
The transmitter communicates with the edge computing gateway of Shidian Technology through the WES-WIO wireless terminal communication protocol to realize real-time reporting of on-site pressure and status detection data.
External pressure probe, pressure detection range and installation method can be selected and customized;
Support 0~1.6MPa conventional pressure range, other ranges can be customized;
Support different levels of accuracy pressure probes to meet different accuracy requirements;
Support straight pipe, thread and other installation methods;

WE-T130 is a series of explosion-proof pressure monitoring transmitters, including LoRa, RS485, 4G, etc., and battery power supply and 24V power supply. The pressure transmitter uses high-stability digital sensors to realize real-time monitoring and calculation of on-site pressure, and uses LoRa, RS485, 4G and other communications to achieve long-distance communication.

The integrated design of the transmitter body and the probe provides a variety of pressure ranges and installation specifications for the different needs of the measured medium, pressure range, and installation method on site, which can be widely used in construction buildings, industrial sites, municipal and other application scenarios.

The explosion-proof type is a flameproof transmitter, which complies with the provisions of GB3836.1-2010 and GB3836.4-2010, and the explosion-proof mark is Exib IIBT4.

Functional categories	Description of the function	remark
Communication interface	LoRa communication port	Antenna interface type: SMA female Support 410.125~490.125MHz frequency band Maximum 22dBm transmit power, The maximum receiving sensitivity of -147dbm, the signal coverage capacity of 5KM in open line-of-sight
	4G	MQTT, HTTP, AND WES cloud service protocols LTE FDD B1/3/5/8 LTE TDD B34/38/39/40/41 (full band). Rate (Mbps) LTE FDD: 10.3(DL)/5.1(UL) LTE TDD：9.1(DL)/3.1(UL)
	RS485	Communication protocol: Compatible with WES-IO (fixed 9600bps) and Modbus protocol Baud rates 2400, 4800, 9600, 19200, 34800, 57600, 115200 Data bits 7 bits, 8 bits Stop bits: 1 bit, 1.5 bit, 2 bit Check digits None, Odd, Even
UI	3* Key input	Refer to the UI specification definition, multi-function buttons
	2* LED indicator	System, LoRa communication indicator
	screen	128*64 dot matrix monochrome LCD Displays sensor values and status information Set up interactions

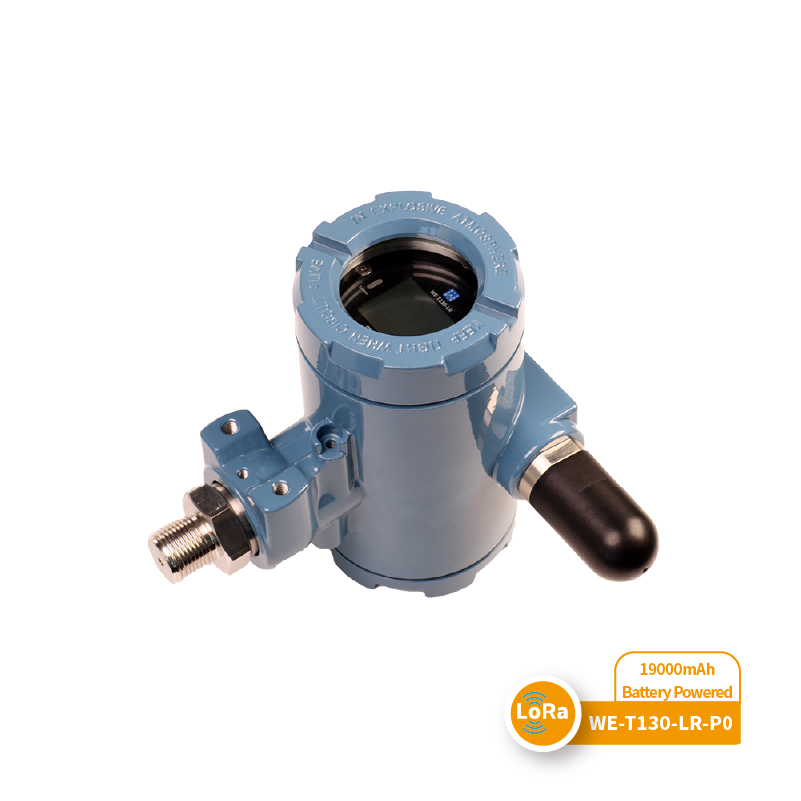

Power supply	Powered by lithium batteries	19000mAh, lithium battery
	24VDC power supply	Wide voltage input, 9~30V
environment	Working environment	Operating Temperature: -20~70 Operating Relative Humidity: 5% ~ 95%
	Storage environment	Storage Temperature: -40°~85°Storage Relative Humidity: 5%~95%
Degree of protection	Waterproof and dustproof	IP67
	ESD	4KV contact, 8KV non-contact
	Explosion-proof type	Flameproof Exib IIBT4

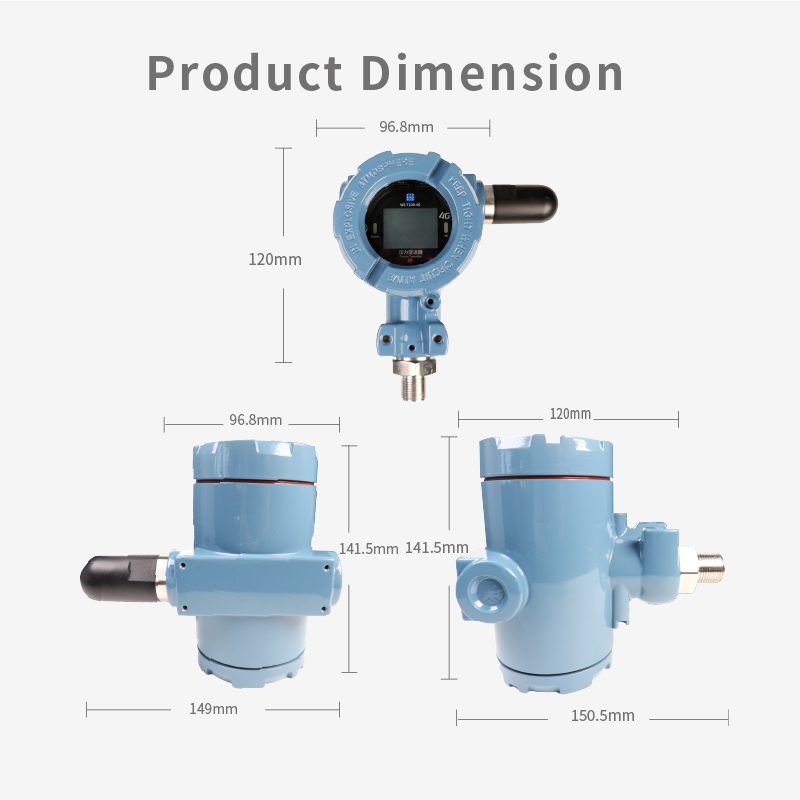

Physical properties	Exterior dimensions	96.8120141.5mm

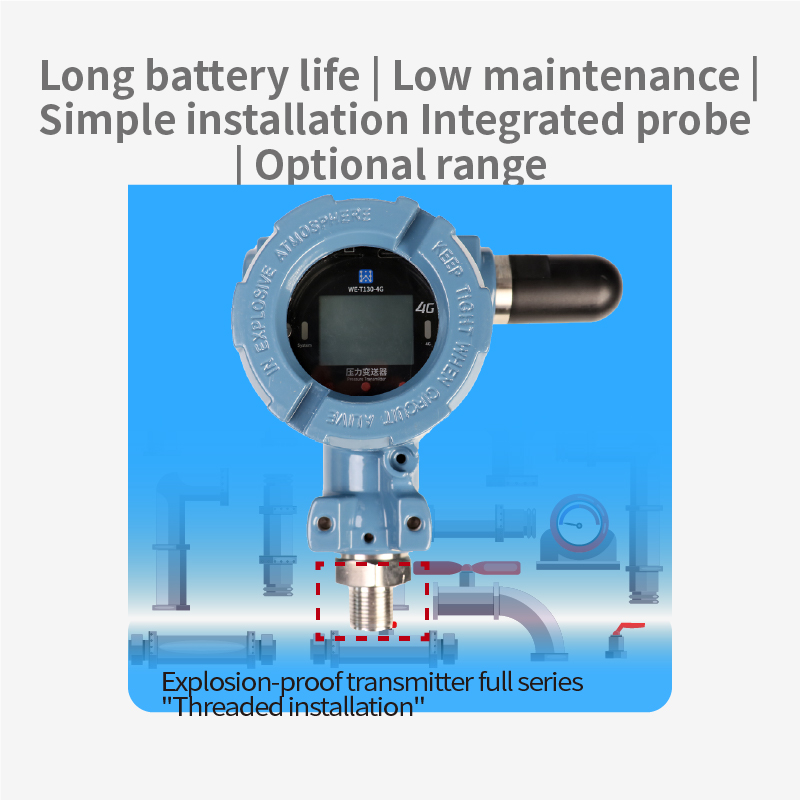

	Installation:	Threaded mounting
monitoring	Type of measurement	Gauge pressure
	Measuring range	Pressure: 0~1.6MPa
	Detection accuracy	Pressure: ±0.5% FS
	Minimum resolution	1kPa
	stability	<0.25% RH/year
	Installation:	Threaded installation, other installation methods can be customized
