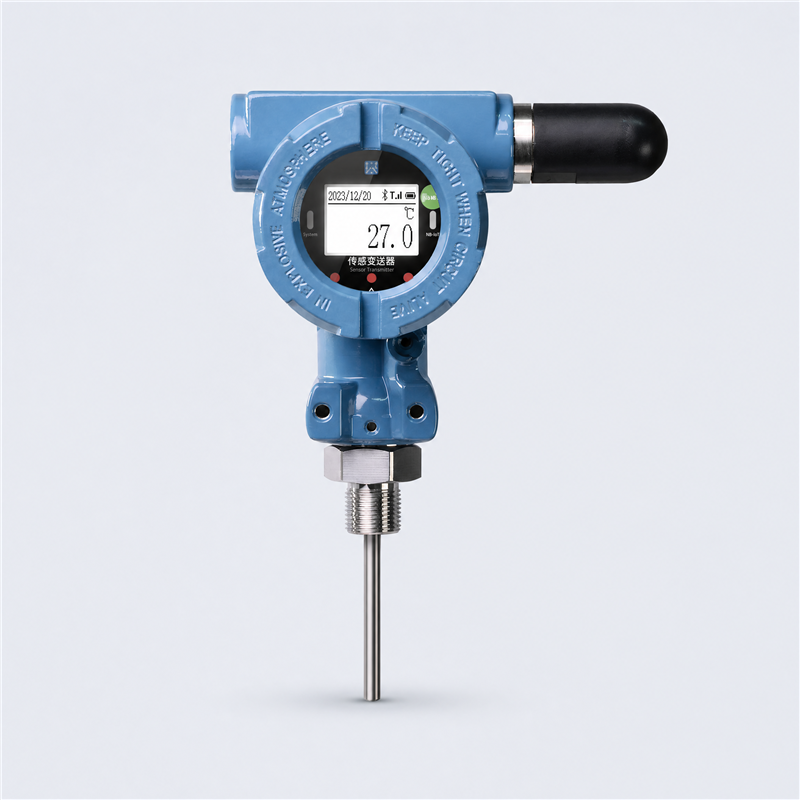

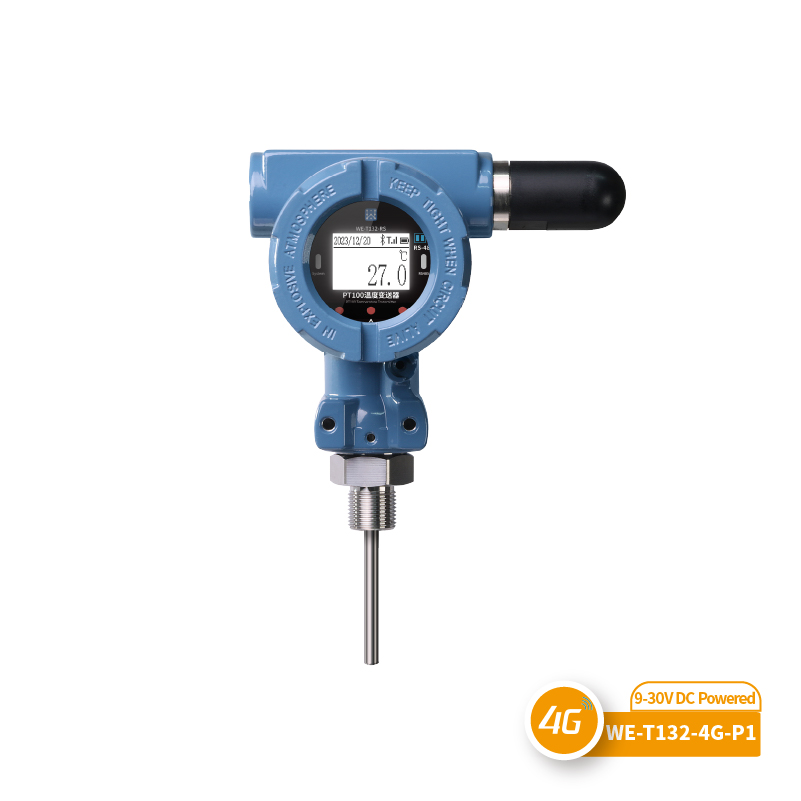

WE-T132 Explosion-proof Temperature Monitoring Transmitters
- It supports a standard temperature range of -50℃ to 200℃, and other ranges can be customized;
- It is compatible with temperature probes of various precision grades to meet diverse accuracy requirements;
- It supports multiple mounting methods such as straight pipe and thread connection;
- IP67 protection rating;
- Storage temperature ranging from -40°C to 85°C, operating ambient temperature from -20°C to 70°C, relative humidity between 5% and 95%;
|
Function Category
|
Function Description
|
Remarks
|
|
Communication Interface
|
LORA Communication Port
|
Antenna connector: SMA female Supports 410.125–490.125MHz frequency band Max. transmit power: 22dBm, 5km line-of-sight coverage in open area Max. receiver sensitivity: -147dBm Supported protocols: MQTT, HTTP, WES cloud service protocol
|
|
4G
|
LTE FDD: B1/3/5/8 LTE TDD: B34/38/39/40/41 (full band) Data rate (Mbps): – LTE FDD: 10.3 (DL) / 5.1 (UL) – LTE TDD: 9.1 (DL) / 3.1 (UL)
|
|
|
RS485
|
Communication protocols: compatible with WES-IO (fixed 9600bps) and Modbus Baud rates: 2400, 4800, 9600, 19200, 34800, 57600, 115200 bps Data bits: 7bit, 8bit Stop bits: 1bit, 1.5bit, 2bit Parity: None, Odd, Even
|
|
|
UI
|
3-button Input
|
Multi-function buttons, defined per UI specification
|
|
2× LED Indicators
|
System indicator & LoRa communication indicator
|
|
|
Display
|
128×64 dot-matrix monochrome LCD Displays sensor values and status information Supports configuration interaction
|
|
|
Power Supply
|

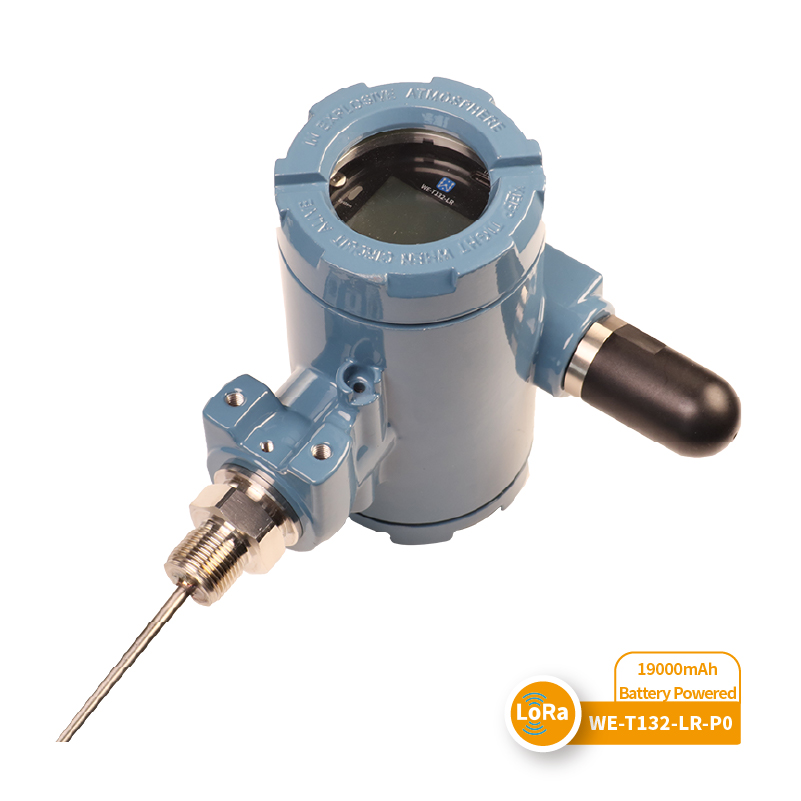

Lithium Battery Power Supply
|
19000mAh lithium battery
|
|

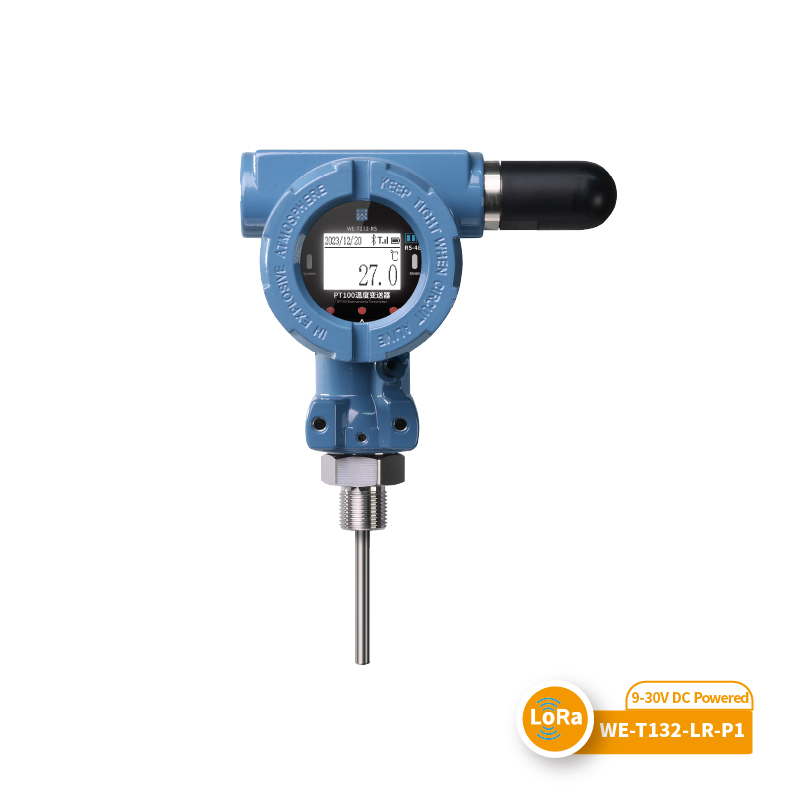

24VDC Power Supply
|
Wide voltage input: 9–30V DC
|
|
|
Environment
|
Operating Environment
|
Operating temperature: -20℃ ~ 70℃ Operating relative humidity: 5% – 95%
|
|
Storage Environment
|
Storage temperature: -40℃ ~ 85℃ Storage relative humidity: 5% – 95%
|
|
|
Protection Rating
|
Water & Dust Resistance
|
IP67
|
|
ESD
|
4kV contact discharge; 8kV air discharge
|
|
|
Physical Characteristics
|
Explosion-proof Type
|
Flameproof type: Ex ib IIB T4
|
|

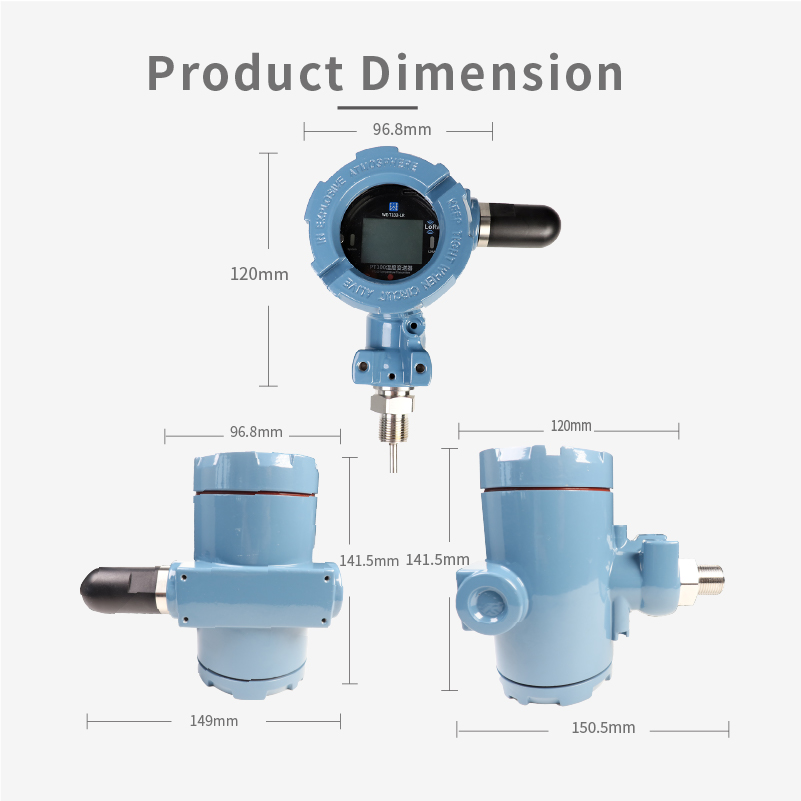

Dimension
|
96.8 × 120 × 141.5 mm
|
|
|
Mounting Method
|
Thread mounting
|
|
|
Monitoring
|
Measurement Type
|
Temperature
|
|
Measuring Range
|
Temperature: -50℃ ~ 200℃
|
|
|
Detection Accuracy
|
Temperature: 0.1℃ (typical value)
|
|
|
Minimum Resolution
|
0.1
|
|
|
Stability
|
< 0.25% RH / year
|
|
|
Mounting Method
|
Thread mounting; other mounting methods customizable
|
