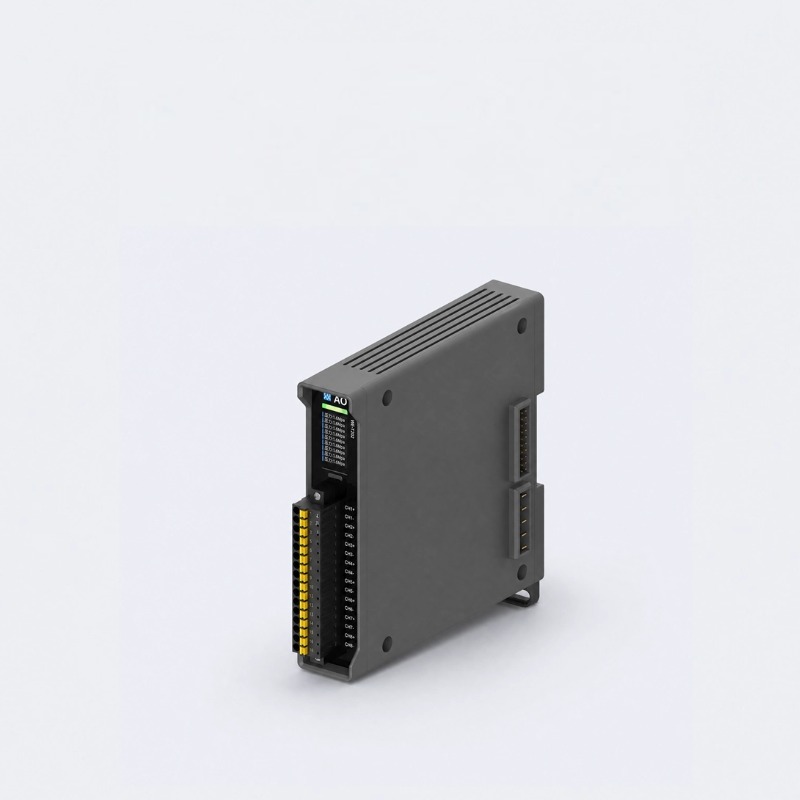

WE-X240 I/O Acquisition Module

Small size;
Modular design, flexible expansion;
High accuracy, can reach 0.5%;
Rail installation method;
Easy to integrate into a wide range of automation systems;
It is easy to maintain and reduces the cost of ownership.

Categories: All Products, IOT I/O Control

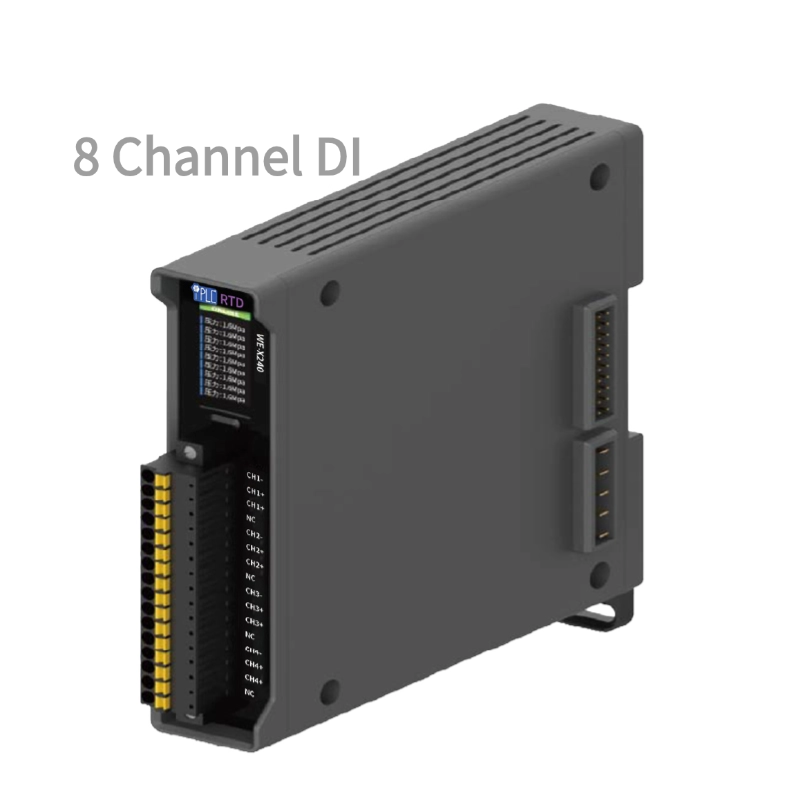

WE-X240 is an IO temperature acquisition module, which adopts extended structure design, flexible matching, small product size, guide rail installation, and space saving. Abundant indicator lights make it possible to judge the status of the device at a glance. With just one touch, the cascade of IO modules can be realized, which is simple to operate and easy to use.

At the same time, it can be combined with WEST’s X280, which perfectly interprets the flexible application mode of building block network IO.

Functional categories	Description of the function	remark
UI	1* Key input	Page turn button, single function
	2* LED indicator	Status indicator
	screen	0.96 inches 80*160 dot matrix color LCD Displays device information and status
Power supply	Power supply mode	Gateway-powered power
environment	Working environment	Operating temperature: -20~70°C Working relative humidity: 5% ~ 95%, non-condensing
environment	Storage environment	Storage temperature: -30~80°C Storage relative humidity: 5% ~ 95%, non-condensing
Degree of protection	Waterproof and dustproof	IP20
Degree of protection	ESD	4KV contact, 8KV non-contact

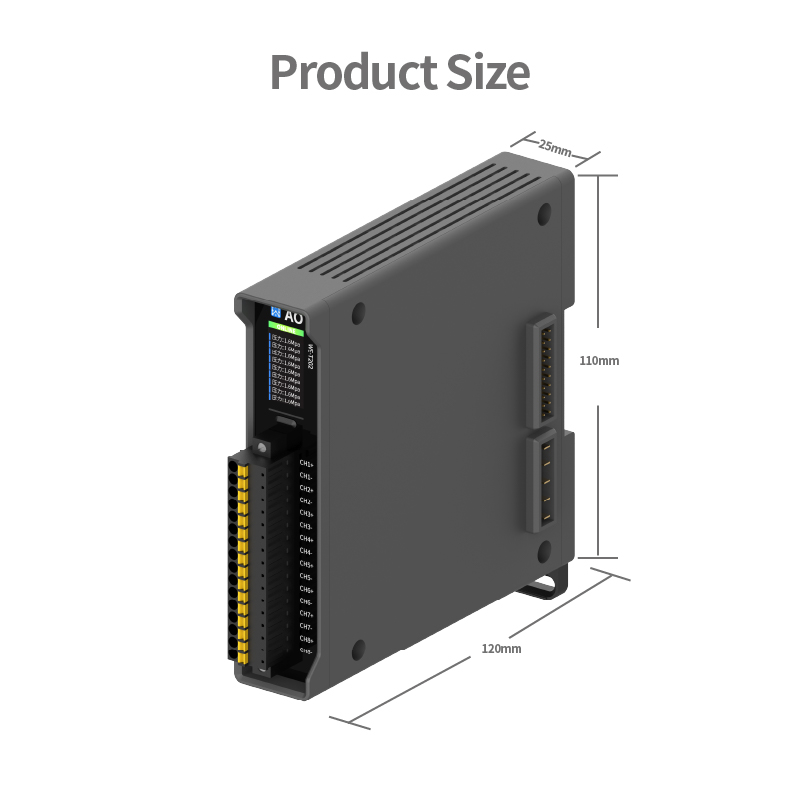

Physical properties	Exterior dimensions	25 (width) * 110 (height) * 117 (depth) mm
	Housing material	ABS/PC
	Installation:	Rail mounting
	Wiring	2-wire, 3-wire
I/O interface	Number of channels	4
	resolution	0.1℃
	precision	±0.5% FSR @ 25°C
	Temperature measurement range	-200~850℃
